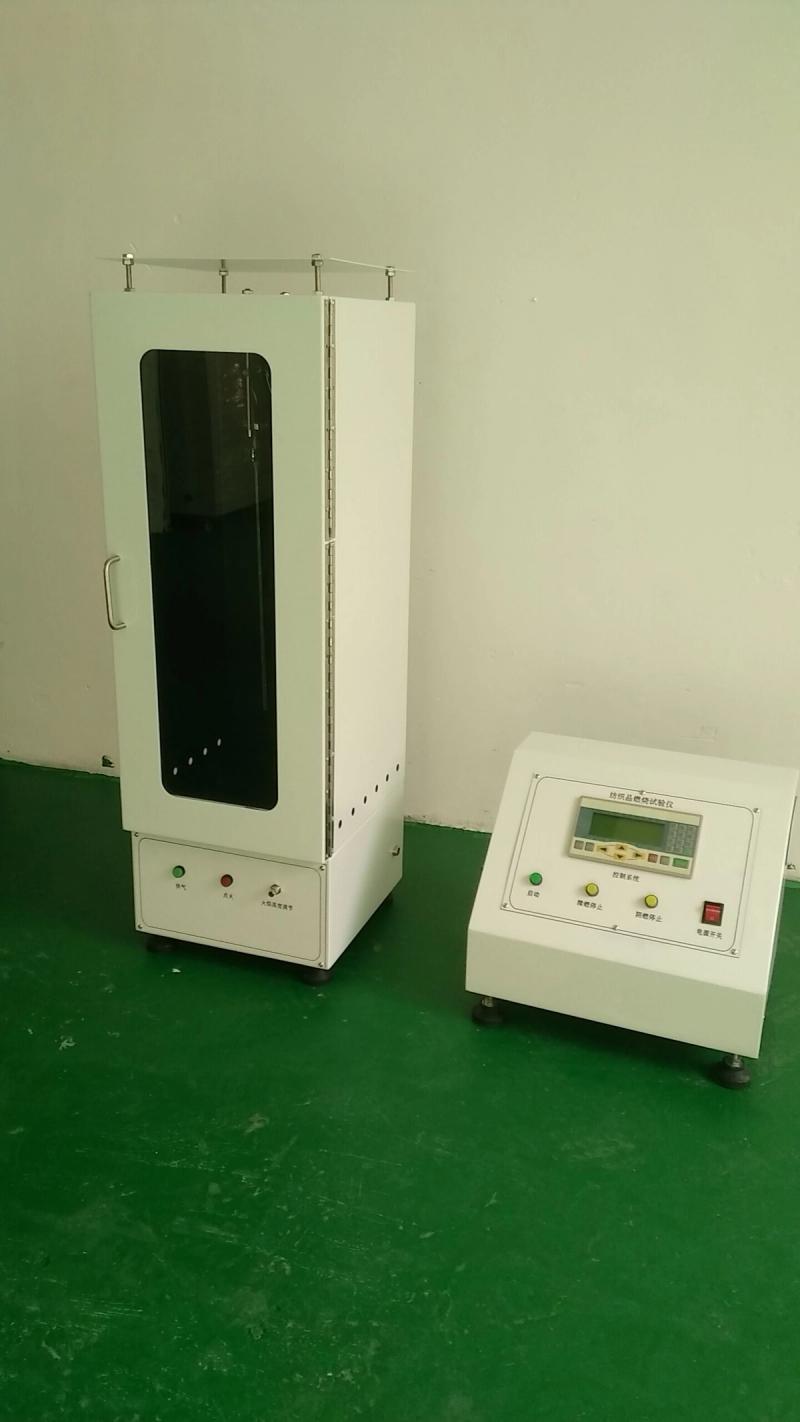

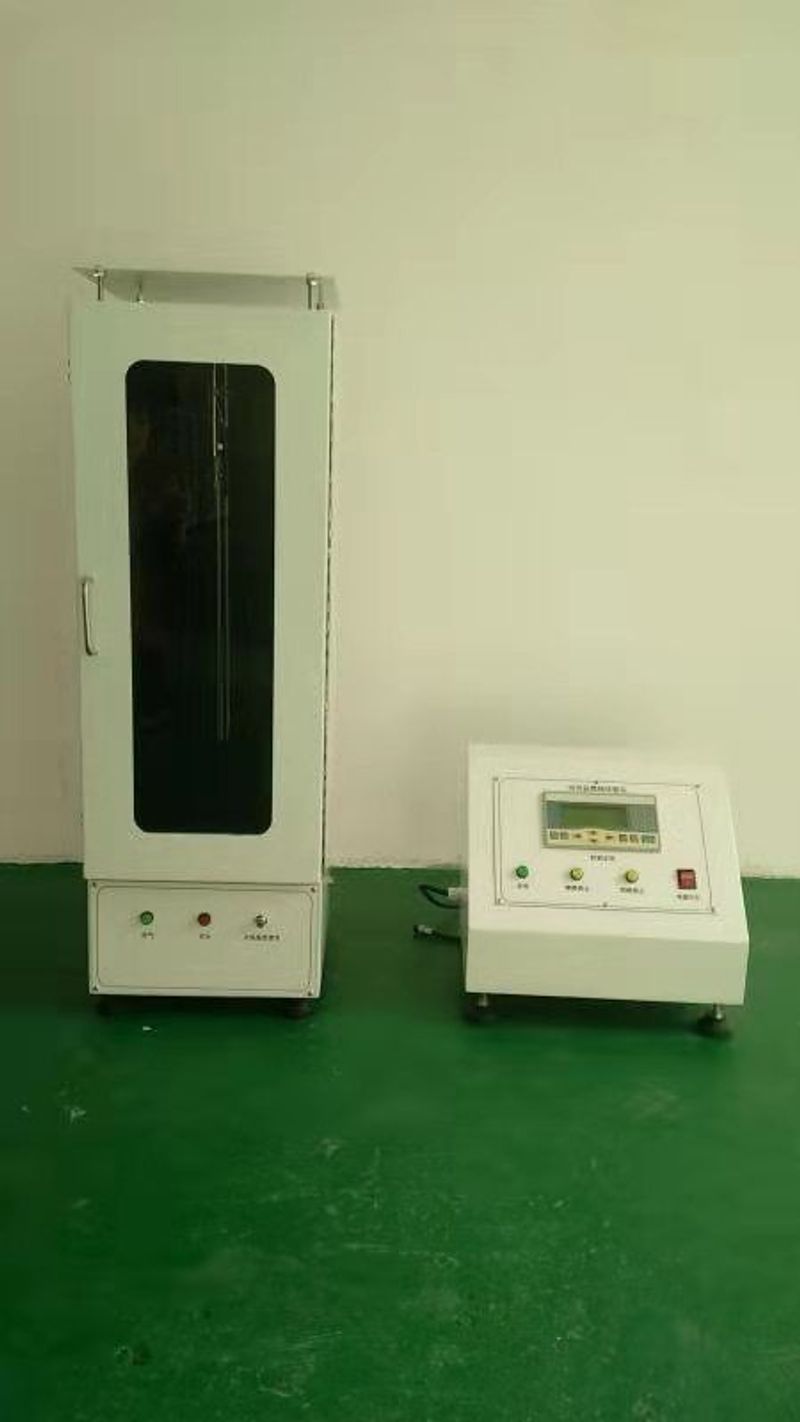

Textile Vertical Combustion Tester

1) Technical indicators shall be in accordance with GB/ t5455-1997 standards.
2) The combustion gas shall be propane or butane gas for industrial use (butane with a purity greater
than 98% is the factory configuration).
3) Application Time: 0 ~ 99 minutes and 99 seconds can be set.
4)After Flame Time: 0 ~ 99 minutes and 99 seconds can be set.
5)Afterglow Time: 0 ~ 99 minutes and 99 seconds can be set.
6) Combustion Burner Nozzle Diameter: Ø 11 mm.
7) Angle Between Nozzle Head Of Combustion Torch And Vertical Line: 25°
8) Combustion Chamber Size (length x width x height) : 329 x 329 x 767mm.
9) Roof vent Size: 12.5 mm Ø, quantity: 16.
10) Boxes on Both Sides of the Vent Size: 12.5 mm Ø, Quantity: box flanked by six.
11) Sample clip: it is composed of two u-shaped stainless steel plates with a thickness of 2.0mm, a
length of 422mm and a width of 89mm. The size of the inner frame of the sample clip is 356 x 51mm.
12) Weight of Hammer: 54.5g, 113.4g, 226.8g, 340.2g, 453.6g.
13) Product Features: the test machine is composed of control box, combustion box, burner, PLC,
liquid crystal display, electromagnetic valve, high pressure igniter, gas pipe, pressure regulating valve,
signal control line.
14) Power Supply: AC 220V, 50Hz
