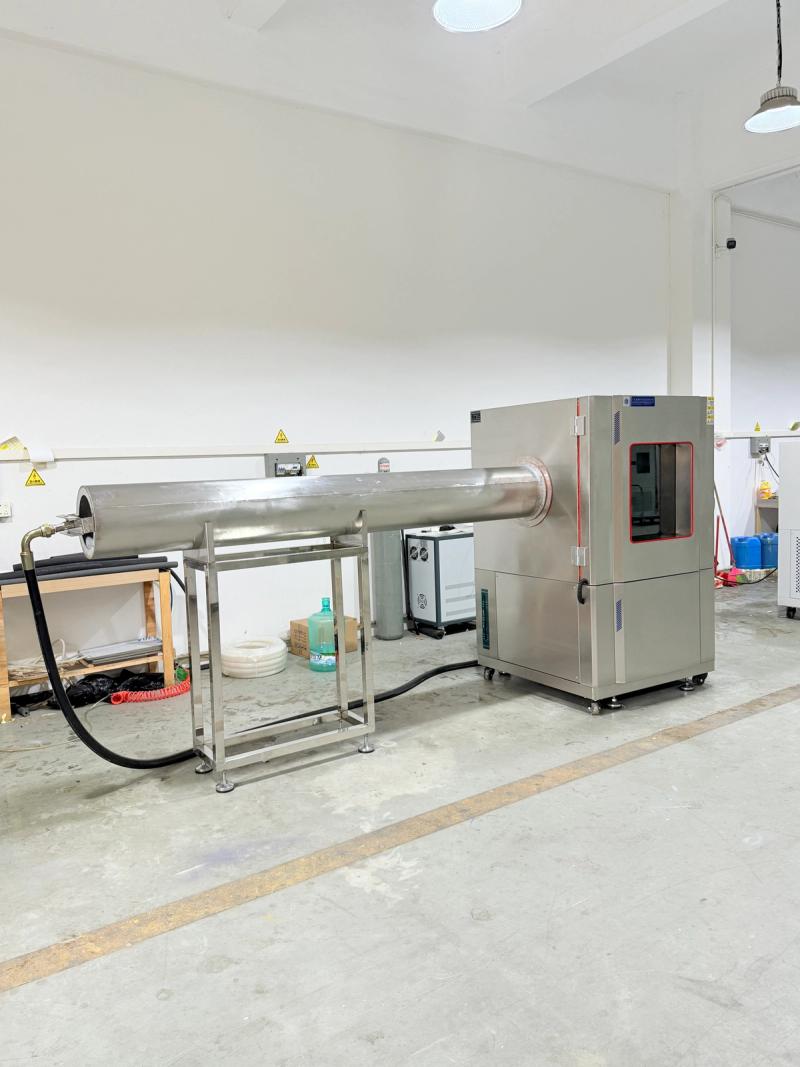

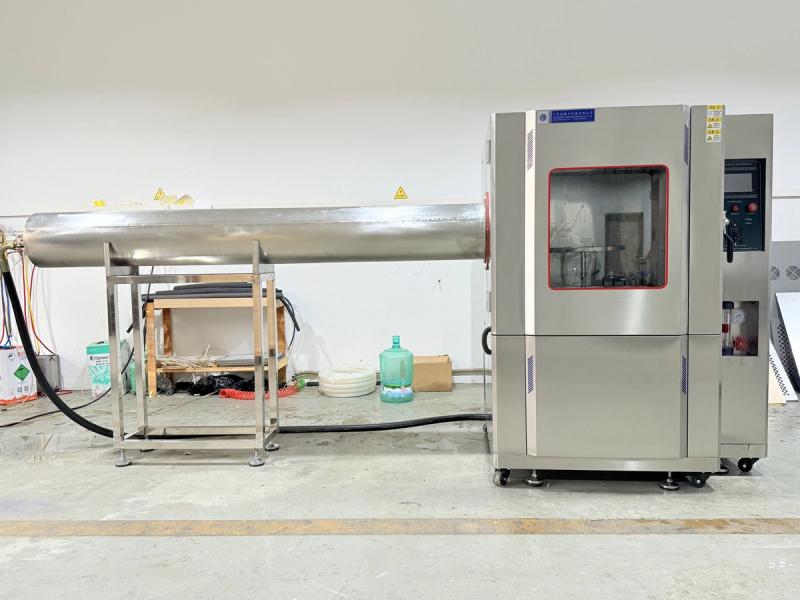

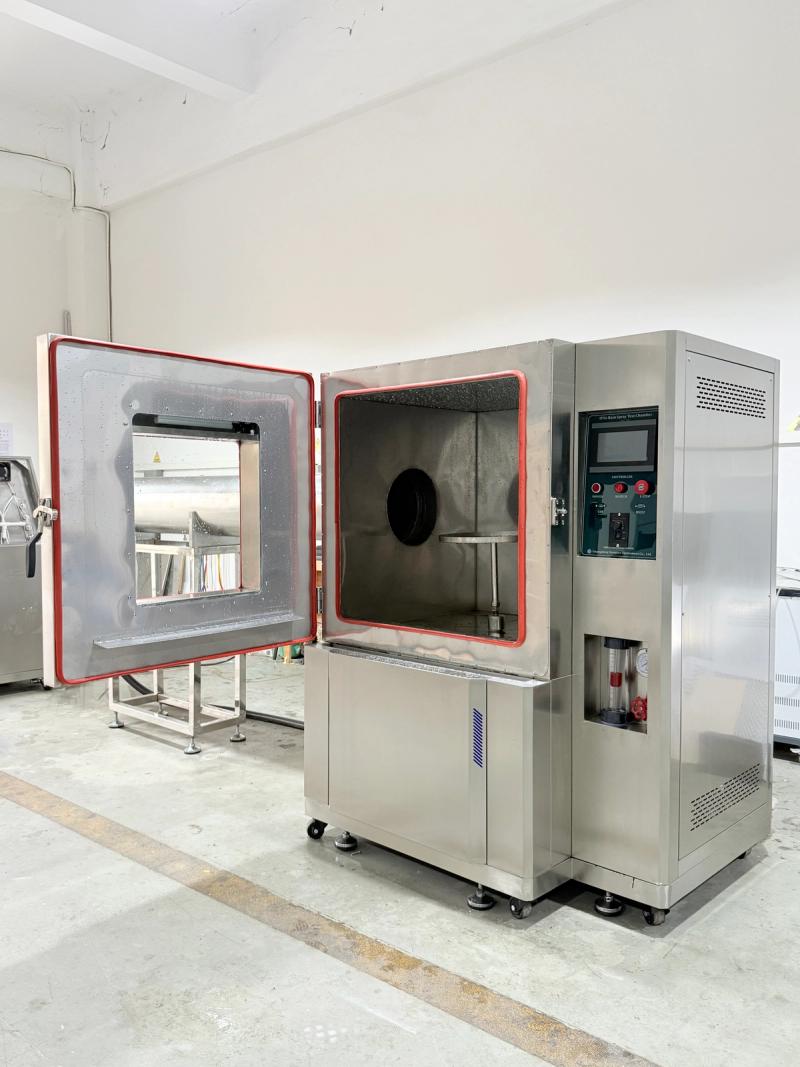

Programmable Rainfall Test Chamber (IPX5, IPX6)
Programmable Rainfall Test Chamber (IPX5, IPX6)
The main role of the equipment is to test the performance of the product in the storage, transportation and use under the climatic environment of rain, the equipment is mainly used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulation of the climate conditions of rain, the physical and other related performance of the product testing, testing, through the calibration to determine the performance of the product is after the requirements, so that the product design, improvement, calibration and factory inspection use.
Categories:
Outer Box Size: 1300* 3800* 200 MM(D*W*H)
Inner Box Size: 1200* 1200* 1200 MM (L*W*H)
Water Spray Head: 2 water jets are installed on top. One IP5 nozzle, one IP6 nozzle
Spray Hole Inner Diameter: 1- φ 6.3mm, IP5 (grade), 1- φ 12.5mm, IP6 (grade)
Pipe Diameter: Six-point Union PVC pipe
Water Spray Pressure: 80～150kpa(Adjusted by flow rate)
Water Spray Flow Rate: IP5(grade) 12.5 ± 1(L/min), IP6(grade) 100±5(L/min)
Duration of Water Spray: 3、10、30、9999min(adjustable)
Turntable: φ500MM
Rotational Speed: 3±1R/min
Run Time Control: 1M～9999min(adjustable)
Water Circulation System: Ensure water recycling
Receiving Water Surface: Product top surface
Water Spray Pressure Gauge: Displayable water spray pressure control
Spraying System: Composed of water pump, water pressure gauge, fixed nozzle bracket, area: 800×800 ㎜
Test Chamber Outer Box: It is made of tempered glass as waterproof wall and stainless steel square as support.
